Motec D1 Range of Colour Displays - Motec D153 and Motec D175

Motec have announced they will be adding two colour displays to their product range this year. The D1 range of high quality, anti-reflective, fully customisable, TFT, LCD screens will be released in two sizes - The Motec D153 and the Motec D175.

motec d153 colour display

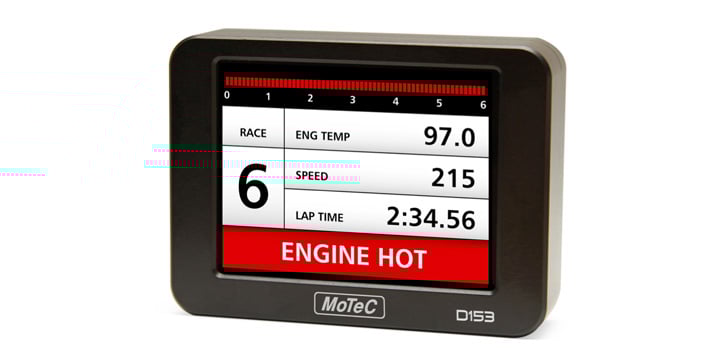

Motec D153 Mini Colour Display

The Motec D153 display is designed to be mounted on a vehicles steering wheel. This enables users to wire inputs such as pit lane limiters or traction control buttons directly to the display and transfer this information via CAN to the ECU. The Motec D153' screen measures 68.2mm x 50.7mm and can be configured via the Motec Data Logger Manager software to display various information combinations.

image display.php

D153 feature run down

  • Colour LCD display
  • Compact size to allow mounting on steering wheels
  • High brightness for sunlight readability
  • Receives display messages from MoTeC data loggers
  • Sends input data to other devices via CAN

See a full list of D153 features in this downloadable PDF

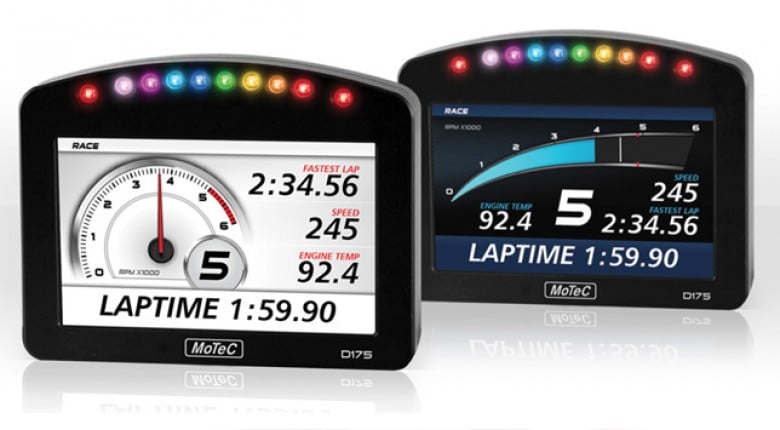

Motec D175 Mini Colour Display

d175display

Featuring a configurable LED light array the Motec D175 display is a perfect addition to any MoTec data logger. The D175 comes equipped with a 107mm x 63.8mm, 640x480 pixel configurable TFT LCD display which can be configured to display information from any of Motec's data logger products.

D175 feature run down

  • High resolution colour LCD display
  • Display size 125mm (5" approx)
  • High brightness for sunlight readability
  • 10 full colour (RGB) LEDs; colour, function and intensity are fully programmable
  • 8 analogue inputs
  • Autosport connector
  • Receives display messages from MoTeC Data Loggers via CAN
  • Sends input data to other devices via CAN
  • See a full list of D175 features in this downloadable PDF
