MoTeC have just released their new C127 and C187

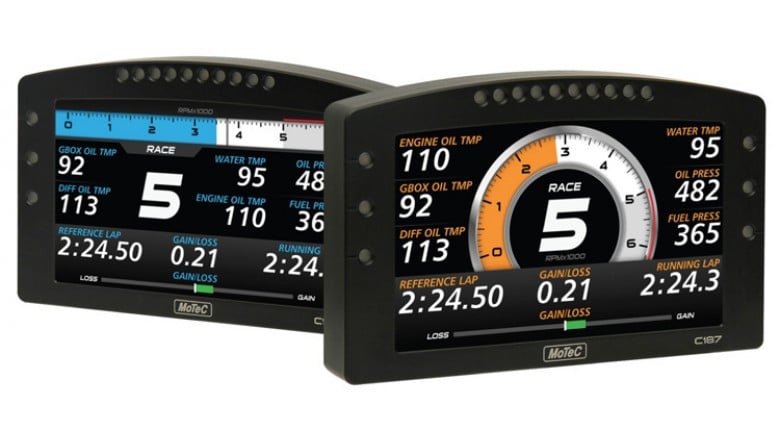

MoTeC have just released their new C127 and C187 to compliment their existing range of full colour dash loggers. The C127 and C187 move to a larger 178mm (7”) screen, offering more screen real estate for displaying a wider range of channels and parameters, while the anti-reflective screen offers exceptional clarity, even in direct sunlight.

The channels, labels and colours are configurable with a range of supplied templates or these dashes are compatible with Display Creator for complete flexibility with full custom displays. The C127 and C187 incorporate the same array of ten programmable LED’s for use as shift lights or driver warnings as the existing C125/C127, but now add a further 6 additional LEDs (three per side). As usual the function and colour of these LEDs is programmable.

The C187 is Motec’s fully featured dash logger aimed more towards professional motorsport use. The dash comes equipped with 250Mb of logging memory, 24 inputs and 6 outputs (upgrades available) and utilises a 79 pin Autosport connector.

C187 Features:

  • 178 mm Colour TFT LCD display (800x400 resolution)
  • Configurable layouts or compatible with Display Creator
  • 250 MB logging at up to 1000 Hz (500 MB optional)
  • 10 Analogue Voltage inputs (20 with I/O Upgrade)
  • 4 Analogue Temp inputs (8 with I/O Upgrade)
  • 4 Digital inputs
  • 2 Switch inputs
  • 4 Speed inputs
  • 6 low side or PWM outputs
  • Internal 3 axis G sensor
  • 4 CAN buses (One configurable as RS232 receive)
  • 2 dedicated RS3232 ports
  • 1 LIN port
  • 79 pin Autosport connector
  • IP68 Ingress Protection (Dust tight, continuous submersion to 1 metre)
  • Supports wideband input via Motec LTC or PLM
  • Compatible with Motec E888/E816, VIM and SVIM modules
  • GPS Lap Timing
  • Includes Motec i2 Standard data analysis (Pro Analysis upgrade available)

The C127 is aimed more towards club level use and is available as a display-only unit or can be upgraded with input/output functionality as well as logging capability. The C127 is also available as a Race Display Kit or Race Logging Kit which include a 10Hz GPS, professional motorsport-quality loom and 120 MB logging upgrade (Race Logging Kit only).

C127 Features:

  • 178 mm Colour TFT LCD display (800x400 resolution)
  • Configurable layouts or compatible with Display Creator
  • 120 MB logging at up to 500 Hz (with logging upgrade)
  • 2 Digital inputs
  • 3 Speed inputs
  • 6 Analogue Voltage inputs (with I/O upgrade)
  • 2 Analogue Temperature inputs (with I/O upgrade)
  • 4 low side or PWM outputs (with I/O upgrade)
  • Internal 3 axis G sensor
  • 2 CAN buses (One configurable as RS232 receive)
  • 2 dedicated RS3232 ports
  • 1 LIN port
  • 79 pin Autosport connector
  • IP67 Ingress Protection (Dust tight, submersion for 30 min at 15 cm)
  • Supports wideband input via Motec LTC or PLM
  • Compatible with Motec E888 and E816 expansion modules
  • GPS Lap Timing
  • Compatible with Motec i2 Standard data analysis (Requires Logging upgrade, Pro Analysis upgrade available)
