We wanted numbers, not opinions. Here’s a full 200 to 0 comparison, and yes, the results did surprise us.

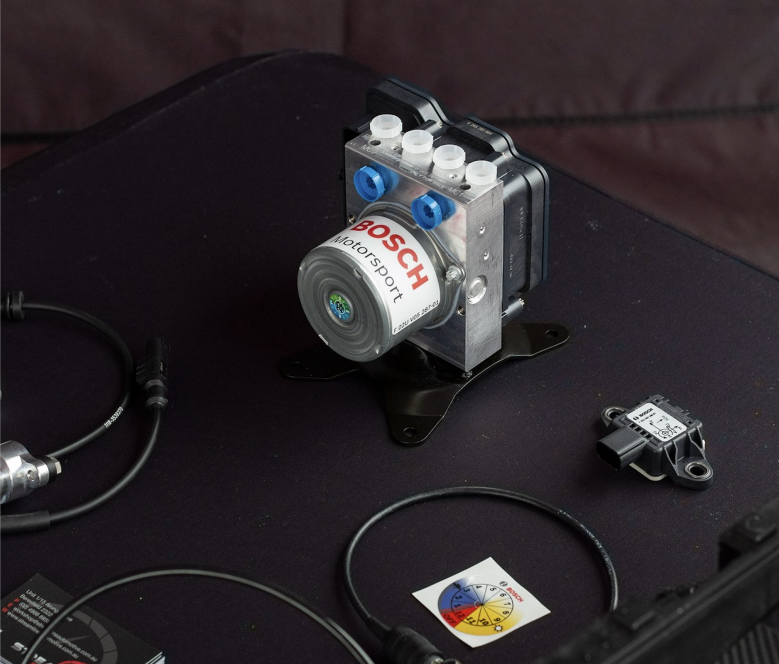

You hear big promises about Bosch Motorsport ABS systems when it comes to upgrading your stock ABS system or adding a setup to a car that never came with an OEM ABS system. We wanted proof. Bosch Motorsport Australia supplied an M5 Club Sport system for our GT86 with no strings attached. We baseline tested the car with the factory ABS, then installed the Bosch kit and repeated the same testing to see what changed.
This video explains how motorsport ABS (anti-lock braking system) differs from road ABS in priority and calibration, why slip ratio matters, and how driver technique changes to let the system work. We cover hydraulic bias, the 12-position adjustment strategy, and how the system reports suggested brake bias over CAN for fast setup. We also show the installation considerations, including pedal box choices, plumbing, and data logging integration with a MoTeC dash.
The results:
From 200 km/h to 0, the average stopping distance improved from 111.2 m to 92.8 m. That’s 18.4 m shorter or about 17% better. The Bosch Motorsport ABS also removed the inconsistent “ice mode” behavior we experienced with the stock system, delivering repeatable braking that builds driver confidence and lets you brake later with control.
This isn’t the cheapest mod, and installation is involved. But gains of this magnitude are rare once a car is already well developed. Based on our testing, the benefits are very real.
Key points covered:
• Road ABS vs aftermarket ABS priorities
• Slip ratio and maximum braking force

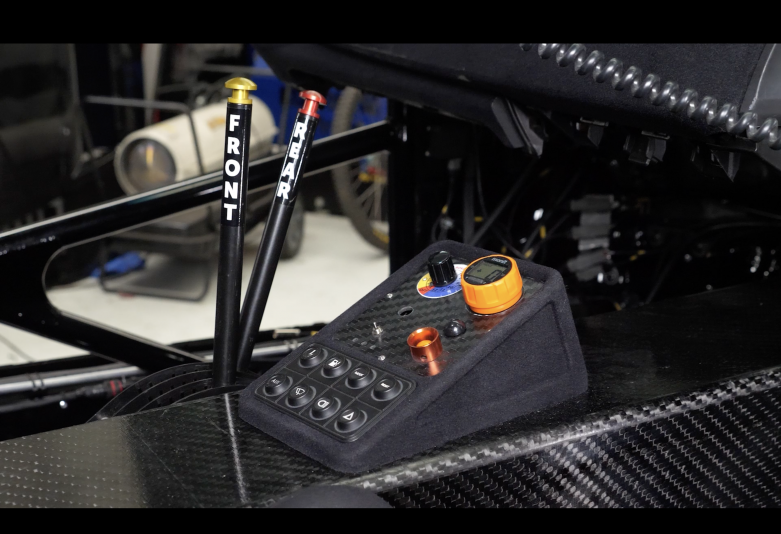

• 12-position ABS adjustment for changing grip
• Brake bias setup and CAN-reported suggestions
• Installation overview and logging integration
• 200 to 0 testing methodology and results
• Driving technique changes for ABS
• Real-world track impressions
--------------------
TIMESTAMPS
0:00 - Big Claims and Our Test Plan
0:45 - Can Drivers Beat Motorsport ABS?
1:24 - Is ABS Cheating or Just Faster?
2:32 - Slip Ratio and Max Braking Explained
4:22 - Road ABS vs Motorsport ABS Priorities
5:24 - Why Road ABS Struggles on Modified Cars
6:11 - Motorsport ABS Calibration and Adjustments
6:58 - What We Tested and Why
7:45 - Baseline 200 to 0 Results: 111.2 m
8:25 - Installation Overview and Pedal Box Choice
9:20 - Bleeding, Plumbing, and Wiring Notes
9:58 - Dial-In: Bias, CAN Data, and Suggestions
10:56 - How to Drive With Motorsport ABS
12:00 - On-Track Impressions and Braking Points
12:57 - Engine Failure and Delayed Testing
13:59 - Retest 200 to 0 Results: 92.8 m
14:50 - Test Conditions, Caveats, and Consistency
15:17 - 17% Improvement and What It Means
15:52 - 200 to 0 Leaderboard Context
16:31 - Consistency vs Ice Mode
17:12 - Conclusions and Next Steps
