The legendary title winning GT300 350Z Nissan hits the Time Attack scene. Get some insight into a factory race car setup including BoP restrictions & more.
Restricted to 300hp for class rules, this VQ35DE powered JGTC (Now Super GT) Z33 350z interesting sees up to 480hp due to some clever intake work by Nismo according to owner and driver Dale Malone of DM Motorsport with a maximum output of 580hp being a potential, but only for a short period of time mainly due to harmonics being an issue at high RPM.
The car runs an older Pectel Cosworth electronics package with Windows 95 still being the required OS to run the tuning software. While it's great to keep things original, complications like this are one of the reasons why we see many people update the electronics in older racing platforms in order to give more flexibility and even increase reliability with the modern crop of ECU's and sensors we have available now days.

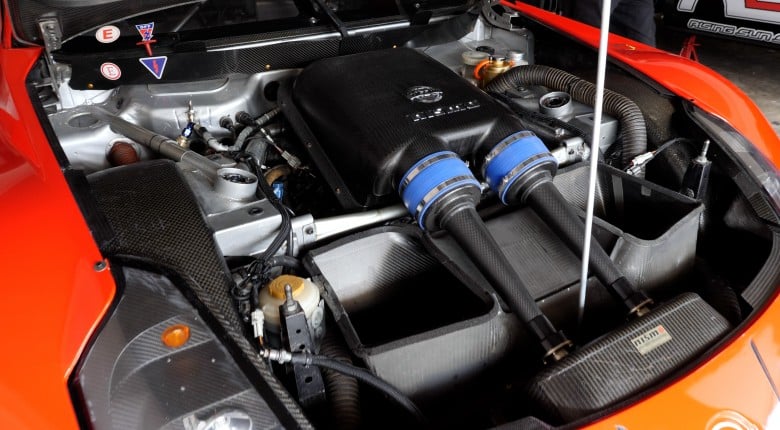

One of the interesting aspects of this car is the 28l intake and airbox which allowed for an extra boost of power coming out of the corners before the intake restrictors, the size of which was dictated by the circuit back when it was a factory race car with teams having a range of engine maps to suit.

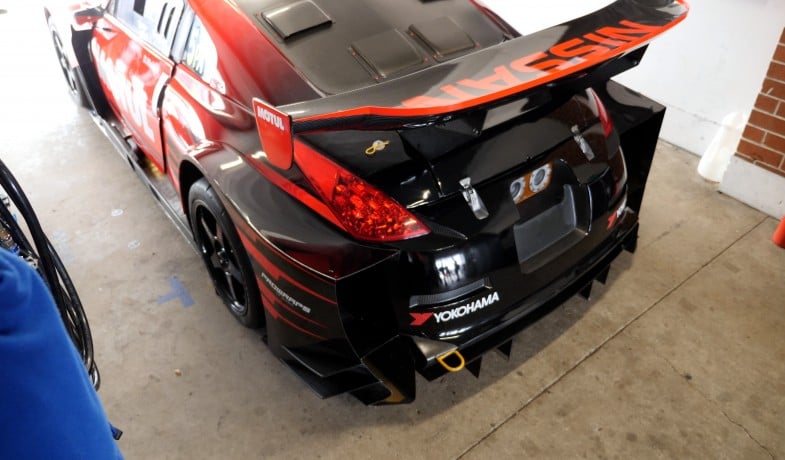

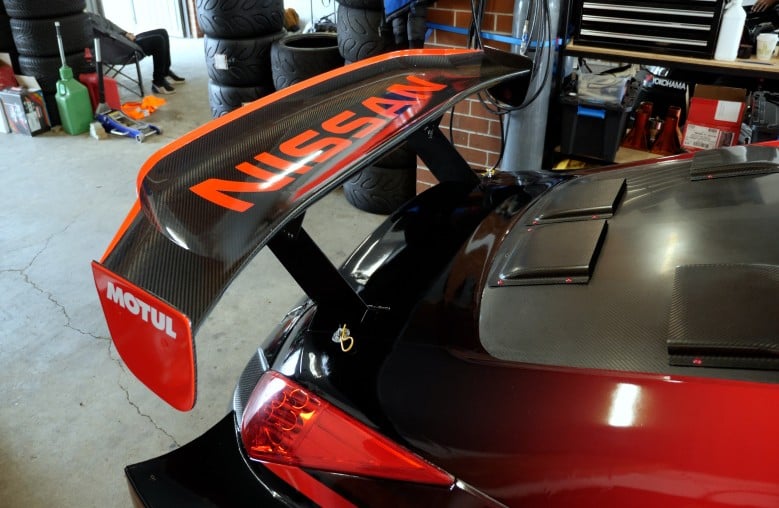

Common to motorsport applications a Hewland split shaft transmission which allows for individual gear ratio adjustment and a PI Reseach data logging system is in place however other than the general engine inputs for the World Time Attack Challenge, shock potentiometers are the only added extra for the moment along with a GT500 aero setup, GT500 being a less restrictive class in the same series at the time.
------------------------------------
TIME STAMPS:
0;00 - JGTC Z33 Legend
0:15 - GT300 vs GT500
0:57 - How The 350z Got To Straya
2:02 - Running A Nismo Built Car
2:26 - Servicing & Parts Life
2:58 - VQ35DE Homologation & Packaging
3:53 - Engine Internal Changes
4:17 - Harmonics and Resonance
4:30 - Original Engine Mapping
4:56 - BoP Restrictor Size - 27.6mm
5:22 - Plenum Volume Used For Tuning
5:54 - Restrictor Sizing Change Procedure
6:38 - Alpha N, Individual 55mm Throttle Bodies
7:00 - 28L Plenum Volume 'Grey' Advantages
7:48 - Tapered Runner Tuning
8:06 - Factory Racing Is The Goods
8:41 - Unrestricted 580hp Power Output at 10,500rpm
9:21 - 420+450hp Burst With Plenum and Restriction
10:12 - 300hp vs 1000hp Cars

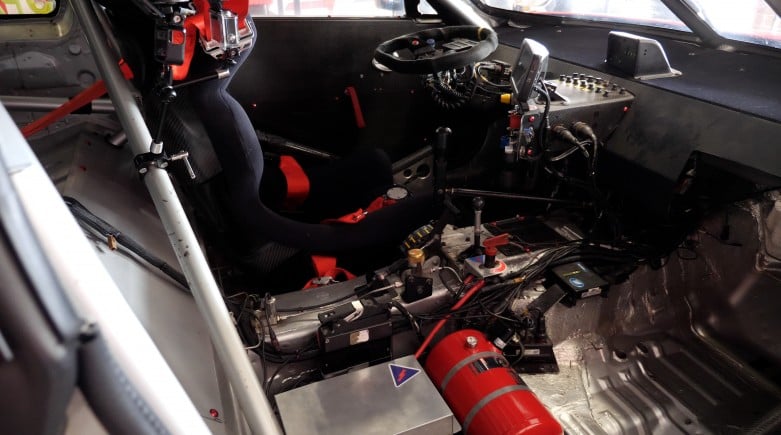

10:30 - Electronics Packaging
11:28 - Tuning Requires Windows 95
12:13 - Historic Significance vs Actually Using It
13:07 - Plans For The Future

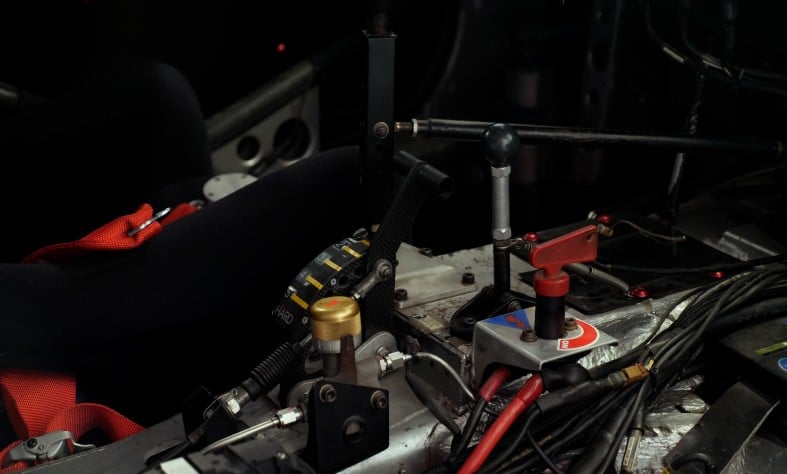

14:06 - Hewland Split Shaft Transmission
15:02 - Ignition Cut Setup
16:27 - Data Logging and Driver Display
16:53 - Being Cautious with Data
17:10 - Door To Door Racing Plan
18:11 - Dale You're a Legend. Thanks Dale!
18:28 - In-Car
18:46 - Like, Subscribe, Free Lesson, All That Good Stuff
------------------------------------
Want to learn how to EFI tune? Start with some free lessons right here.
